A strong focus on sustainability and efficiency

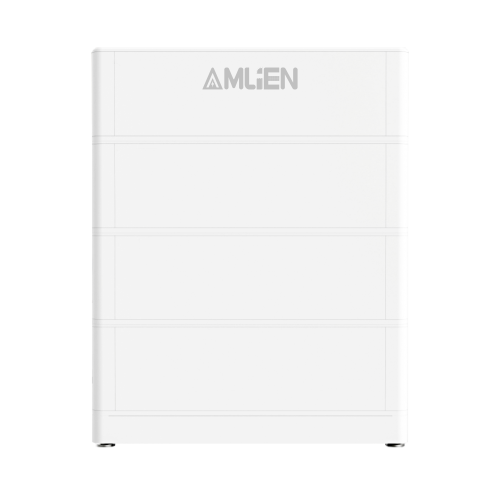

10kWh-40kWh High Voltage Battery Empowering a Sustanaible Future ·     Stackable Slim and space-efficient, saving installation space ·     Eco-friendly &Energy efficiency Maximize savings on your electricity bill by charging during daytime and discharging during peak night hours ·      Safer Lithium Iron Phosphate (LFP) Battery ·     Intelligent and stable Leverage cloud-based solutions to enable remote O&M and monitoring capabilitie ·     Reliable Intelligent BMS, providing complete protection Technical Parameters Electrical Data  Battery Type LFP Dimensions(WxDxH)  430 x 430 x2250 mm Battery Module Capacity  4.02kWh Weight <0.8T Number of Modules  1 Installation Site Indoor  Total Battery Capacity  80.1kWh IP Protection IP68  Nominal Voltage 204V Anti Corrosion Level  C4 Operating Voltage Range 180V~226V  Operation Humidity  5%~95% (No condensing) Charge/Discharge Rate  Max. 0.2C  Operation Temperature -30°C~+50°C DoD 90% Max.Operation Altitude 4000>m (3000m derating） Topology Transformerless  Communication Port Ethernet;CAN IP Protection IP65 Communication Protocol  CAN;MODBUS TCP/IP Cooling Method Intelligent Air Cooling Cooling Method Air conditioner Max. Operation Altitude 3000m  Standards  IEC62619-2017;UN38.3;IEC61000-6-2/4 PV Side Max. Input Voltage  750V MPPT Voltage Range 300V~600V Max. Current per MPPT  24A Number of MPPT 2 Number of Inputs Per MPPT 1 Battery Side Max. Input  Voltage  450V Min. Input Voltage 300V DC Voltage  at Nominal  OperationC  400V~450V Max. DC Current 40A*2 Max. DC Input Power  44kW Number of DC Inputs 1 AC Side(On Grid) Nominal AC Output Power 40kW Max. AC  Output  Power  44kVA Max. AC  Current Nominal AC Voltage  64A Nominal AC Voltage  320V AC Voltage Range 272V~352V Nominal Grid Frequency/Frequency Range 50/60Hz±5Hz THDv <3%(100% Load) Adjustable PF Range -1(Lagging)~1(Leading) AC Side(Off Grid)  Nominal AC Voltage  168/320V±3%; 3L+N+PE THDv <3%(Linear Load)  Nominal Grid Frequency/Frequency Range  50/60Hz Nominal AC Output Power 40kW Max. AC Output Power 44kVA Efficiency  Max. Efficiency  99.5% Protection Reverse Connection Protection Yes DC Switch Yes Over-Temperature Protection Yes Grid Monitoring/ Earthing Fault Detection  Yes Insulation Monitoring Yes DC/AC Surge Protection DC Type II;AC Type III

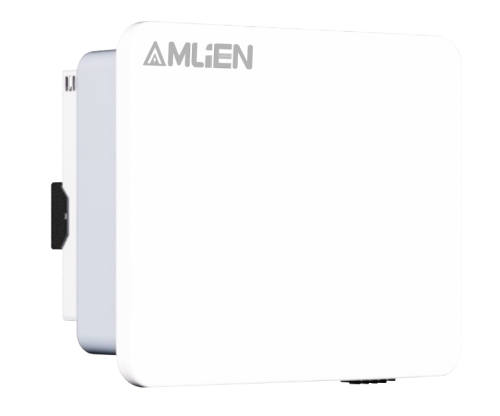

Am30KWI-GT - Amlien 30kW Grid-Tied Inverter lnput Data (Dc) LHONG10kW LHONG15kW   LHONG20kW LHONG30kW Max. PV Input Power 16kW 24kW   32kW 48kW Max PV Input Voltage     1100V     Start Voltage 160V 160V   250V 250V Rated Input Voltage     600V     Full-load MPP Voltage Range 360V ~ 850V 450V ~ 850V   480V ~ 800V 500V ~ 800V MPPT Voltage Range 180V ~ 1000V 180V ~ 1000V   200V ~ 1000V 200V ~ 1000V Number of MPP Trackers 2 2   2 3 Number of String per MPPT 44958 44958   44959 2 Max. Short Circuit Current per MPPT 25A 25A   40A 32A Max. Current per MPPT 18A 18A   32A 26A Output Data (Ac)           Max. Output Current 15.9A 23.9A   35.3A 48.3A Rated Output Power 10kW 15kW   22kW 30kW Max. Output Power 10kW 16.5kVA   24.4kVA 33.3kVA Rated Grid Frequency     50Hz / 60Hz     Rated Grid Voltage     230Vac / 400Vac, 3L / N / PE     Power Factor     >0.99 ( 0.8 leading ~ 0.8 lagging )     THDi     <3% ( Rated Power )     Efficiency           Max. Efficiency 0.986 0.986   0.984 0.986 EU Efficiency 0.985 0.985   0.98 0.985 Battery Charge/Discharge Efficiency     0.999     Protection           Anti-islanding Protection     Yes     DC Reverse Polarity Protection     Yes     Residual Current Monitoring Unit     Yes     AC short Circuit Protection     Yes     Insulation Resistance Monitoring     Yes     Ground Fault Monitoring     Yes     Grid Monitoring     Yes     Surge Protection     Type Il     AFCI  Protection     Optional     Communication           Communication     Standard：RS485 Optional：WiFi / GPRS / Etherne     Display                                LED / LCD / WiFi+Appt     Standard Compliance           Grid Connection Standards IEC 61727, IEC 62116, IEC 60068, IEC 61683, VDE-AR-N 4105,EN 50549, AS/NZS 4777, CEI 0-21, VDE 0126-1-1/A1 VFR 2014, UTE C15-712-1, NRS 097-2-1, C10/11, G98/G998/G99 Safety / EMC     IEC 62109-1, IEC 62109-2, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3     General Data           Dimension (WxH x D) 481 x 395 x 195 mm 481 x 395 x 195 mm   534 x 440 x 220 mm 600 x 430 x 230 mm Weight 13.5kg 13.5kg   24 kg 30 kg Operating Temperature Range     -30°C~+60°C     Cooling Method     Natural     Protection Degree     IP66     Max. Operating Altitude     4000 m     Relative Humidity     0 ~ 100%

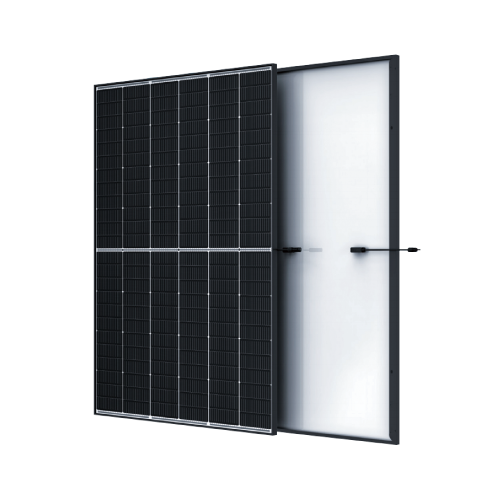

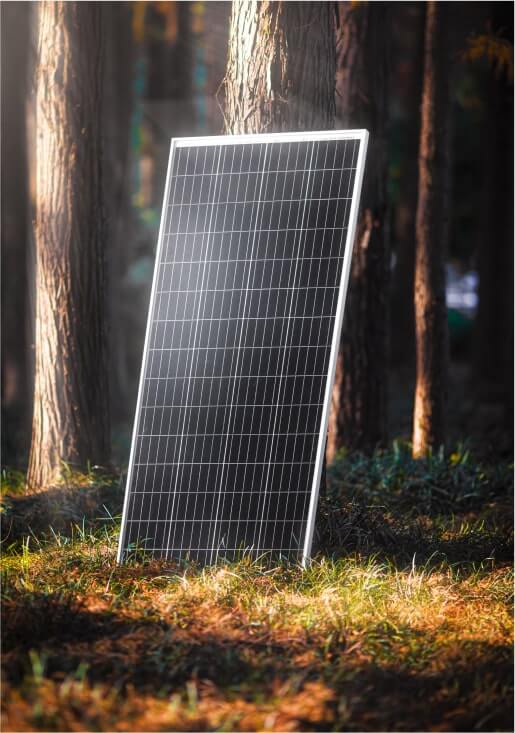

Small in size, big on power • Small form factor. Generate a huge amount of energy even in limited space. • Up to 450W, 21.8% module efficiency with high density interconnect technology • Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection • Reduce installation cost with higher power bin and efficieny • Boost performance in warm weather lower temperature coefficient (-0.34%) and operating temperature Universal solution for residential and C&I rooftops • Designed for compatibility with existing mainstream optimizers, inverters and mounting systems • Perfect size and low weight. Easy for handling. Economy for transporting • Diverse installation solutions. Flexible for system deployment High Reliability • 15 year product warranty • 25 year performance warranty with lowest degradation • Minimized micro-cracks with innovative non-destructive cutting technology • Ensured PID resistance through cell process and module material control • Mechanical performance up to 6000 Pa positive load and 4000 Pa negative load Electrical Data(STC)       Peak Power Watts-PMAX (Wp)* 500 550 600 Power Tolerance-PMAX (W) 0 ~ +5 Maximum Power Voltage-VMPP (V) 44.9 45.3 45.6 Maximum Power Current-IMPP (A) 11.03 11.08 12.03 Open Circuit Voltage-VOC (V) 53.1 53.4 53.9 Short Circuit Current-ISC (A) 11.03 11.6 12.01 Module Efficiency η m (%) 23.06 24.03 25.5 Mechanical Data       Solar Cells Monocrystalline No. of Cells 144 cells Module Dimensions  1762×1134×30 mm (69.06×43.15×1.18 inches) Weight 21.0kg (46.40 lb) Front Glass 1.6 mm (0.06 inches), High Transmission,  AR Coated Heat Strengthened Glass Encapsulant Material  POE/EVA Back Glass 1.6mm(0.06 inches), Heat Strengthened Glass  Frame 30mm (0.06 inches) Anodized Aluminium Alloy, Black  J-box IP 68 rated Cables Photovoltaic Technology Cable 4.0mm2 (0.006 inches2), Portrait: 350/280 mm(13.78/11.02 inches) Length can be customized Connector MC4 EVO2 / TS4 Plus / TS4* Electrical Data(NOCT)       Peak Power Watts-PMAX (Wp)* 500 550 600 Maximum Power-PMAX (Wp) 345 355 365 Maximum Power Voltage-VMPP (V) 43 45.6 47.5 Maximum Power Current-IMPP (A) 8.5 9.3 10.5 Maximum System Voltage 50.6 54.7 58.8 Open Circuit Voltage-VOC (V) 9.5 10.6 12.3 Temperature Ratings       NOCT(Nominal Operating Cell Temperature)  43°C (±2°C) Temperature Coefficient of PMAX   0.3%/°C Temperature Coefficient of VOC  - 0.24%/°C  Temperature Coefficient of ISC 0.04%/°C Maximumratings       Operational Temperature  40~+85ºC  Temperature Coefficient of PMAX  1500V DC (IEC) Temperature Coefficient of VOC 20A Product Warranty       Modules per Box  36 pieces Modules per 40’ Container 936 pieces Warranty       Product Workmanship Warranty  15 year  Power Warranty 25 year  First year Degradation 0.02 Annual Power Attenuation 0.0055
