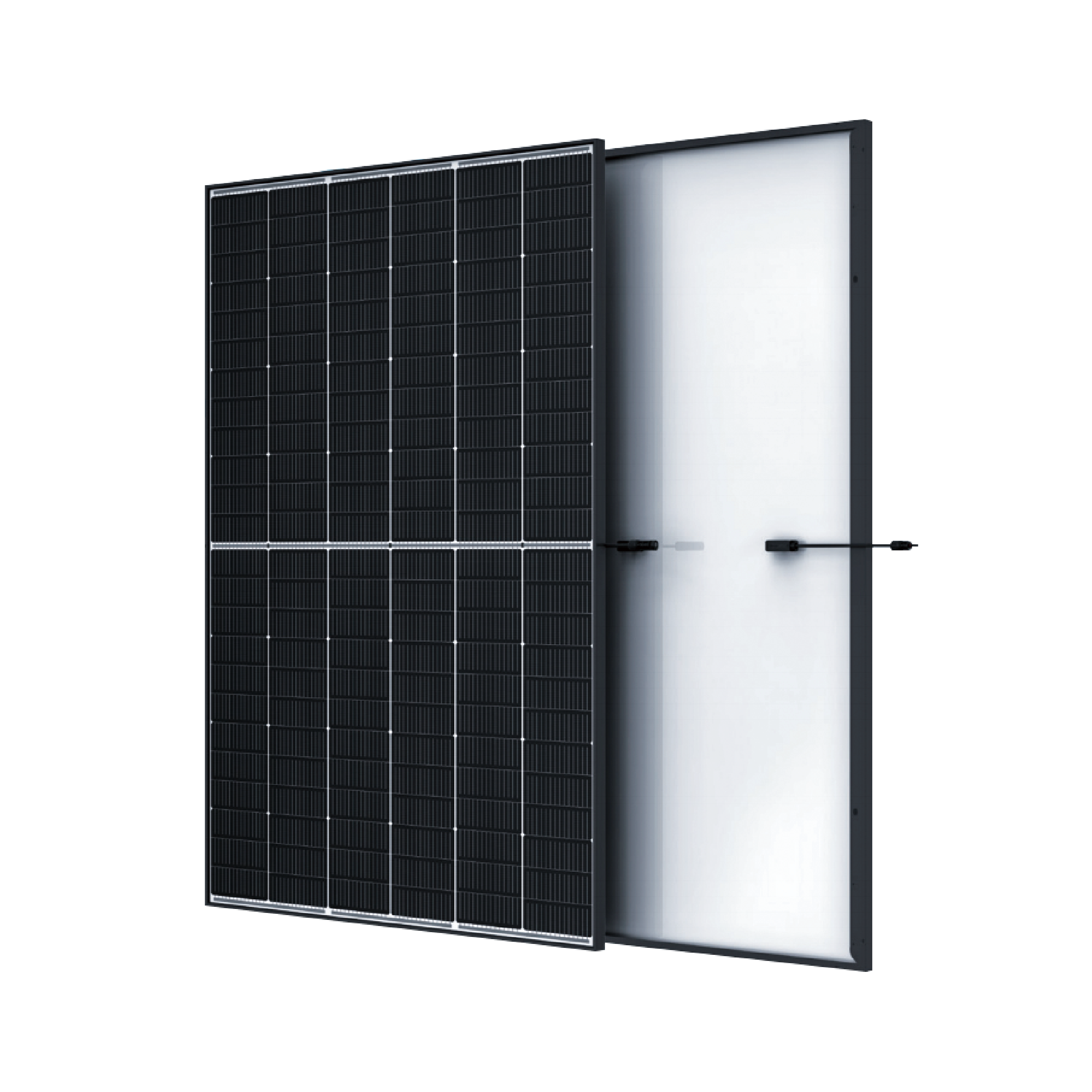

Small in size, big on power
• Small form factor. Generate a huge amount of energy even in limited space.
• Up to 450W, 21.8% module efficiency with high density interconnect technology
• Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection
• Reduce installation cost with higher power bin and efficieny
• Boost performance in warm weather lower temperature coefficient (-0.34%) and operating temperature
Universal solution for residential and C&I rooftops
• Designed for compatibility with existing mainstream optimizers, inverters and mounting systems
• Perfect size and low weight. Easy for handling. Economy for transporting
• Diverse installation solutions. Flexible for system deployment
High Reliability
• 15 year product warranty
• 25 year performance warranty with lowest degradation
• Minimized micro-cracks with innovative non-destructive cutting technology
• Ensured PID resistance through cell process and module material control
• Mechanical performance up to 6000 Pa positive load and 4000 Pa negative load
| Electrical Data(STC) | |||
| Peak Power Watts-PMAX (Wp)* | 400 | 420 | 450 |
| Power Tolerance-PMAX (W) | 0 ~ +5 | ||
| Maximum Power Voltage-VMPP (V) | 41.7 | 42.2 | 42.5 |
| Maximum Power Current-IMPP (A) | 9.94 | 10.08 | 10.24 |
| Open Circuit Voltage-VOC (V) | 50 | 50.2 | 50.4 |
| Short Circuit Current-ISC (A) | 10.55 | 10.61 | 10.67 |
| Module Efficiency η m (%) | 20.8 | 21.3 | 21.8 |
| Mechanical Data | |||
| Solar Cells | Monocrystalline | ||
| No. of Cells | 120 cells | ||
| Module Dimensions | 1762×1134×30 mm (69.37×44.65×1.18 inches) | ||
| Weight | 21.8 kg (48.1 lb) | ||
| Glass | 3.2 mm (0.13 inches), High Transmission,AR Coated Heat Strengthened Glass | ||
| Encapsulant Material | EVA/POE | ||
| Backsheet | White | ||
| Frame | 30mm(1.18 inches) Anodized Aluminium Alloy | ||
| J-Box | IP 68 rated | ||
| Cables | Photovoltaic Technology Cable 4.0mm2 (0.006 inches2),Short Circuit Current-ISC (A) 10.55 10.58 10.61 10.64 10.67 Portrait: 350/280 mm(13.78/11.02 inches) Length can be customized |
||
| Connector | MC4 EVO2 / TS4* | ||
| Electrical Data(NOCT) | |||
| Peak Power Watts-PMAX (Wp)* | 400 | 420 | 450 |
| Maximum Power-PMAX (Wp) | 312 | 321 | 329 |
| Maximum Power Voltage-VMPP (V) | 38.7 | 39.5 | 40 |
| Maximum Power Current-IMPP (A) | 8.07 | 8.13 | 8.23 |
| Maximum System Voltage | 47.1 | 47.2 | 47.5 |
| Open Circuit Voltage-VOC (V) | 8.5 | 8.55 | 8.65 |
| Temperature Ratings | |||
| NOCT(Nominal Operating Cell Temperature) | 43°C (±2°C) | ||
| Temperature Coefficient of PMAX | 0.34%/°C | ||
| Temperature Coefficient of VOC | 0.25%/°C | ||
| Temperature Coefficient of ISC | 0.04%/°C | ||
| Maximumratings | |||
| Operational Temperature | 40~+85ºC | ||
| Temperature Coefficient of PMAX | 1500V DC (IEC) | ||
| Temperature Coefficient of VOC | 20A | ||
| Product Warranty | |||
| Modules per Box | 36 pieces | ||
| Modules per 40’ Container | 936 pieces | ||
| Warranty | |||
| Product Workmanship Warranty | 15 year | ||
| Power Warranty | 25 year | ||
| First year Degradation | 0.02 | ||
| Annual Power Attenuation | 0.0055 | ||
