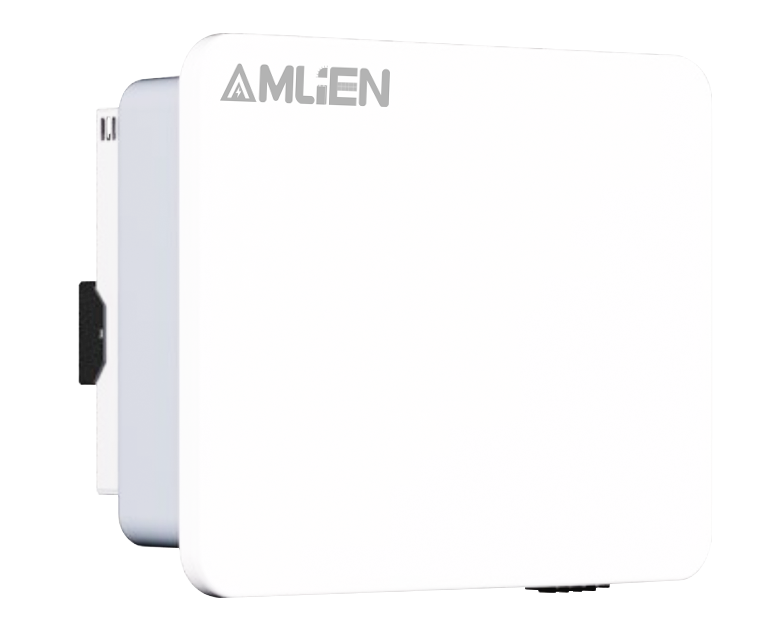

Am10KWI-GT - Amlien 10kW Grid-Tied Inverter
| lnput Data (Dc) | LHONG10kW | LHONG15kW | LHONG20kW | LHONG30kW | |
| Max. PV Input Power | 16kW | 24kW | 32kW | 48kW | |
| Max PV Input Voltage | 1100V | ||||
| Start Voltage | 160V | 160V | 250V | 250V | |
| Rated Input Voltage | 600V | ||||
| Full-load MPP Voltage Range | 360V ~ 850V | 450V ~ 850V | 480V ~ 800V | 500V ~ 800V | |
| MPPT Voltage Range | 180V ~ 1000V | 180V ~ 1000V | 200V ~ 1000V | 200V ~ 1000V | |
| Number of MPP Trackers | 2 | 2 | 2 | 3 | |
| Number of String per MPPT | 44958 | 44958 | 44959 | 2 | |
| Max. Short Circuit Current per MPPT | 25A | 25A | 40A | 32A | |
| Max. Current per MPPT | 18A | 18A | 32A | 26A | |
| Output Data (Ac) | |||||
| Max. Output Current | 15.9A | 23.9A | 35.3A | 48.3A | |
| Rated Output Power | 10kW | 15kW | 22kW | 30kW | |
| Max. Output Power | 10kW | 16.5kVA | 24.4kVA | 33.3kVA | |
| Rated Grid Frequency | 50Hz / 60Hz | ||||
| Rated Grid Voltage 230Vac / 400Vac, 3L / N / PE | |||||
| Power Factor >0.99 ( 0.8 leading ~ 0.8 lagging ) | |||||
| THDi | <3% ( Rated Power ) | ||||
| Efficiency | |||||
| Max. Efficiency | 0.986 | 0.986 | 0.984 | 0.986 | |
| EU Efficiency | 0.985 | 0.985 | 0.98 | 0.985 | |
| Battery Charge/Discharge Efficiency | 0.999 | ||||
| Protection | |||||
| Anti-islanding Protection | Yes | ||||
| DC Reverse Polarity Protection | Yes | ||||
| Residual Current Monitoring Unit | Yes | ||||
| AC short Circuit Protection | Yes | ||||
| Insulation Resistance Monitoring | Yes | ||||
| Ground Fault Monitoring | Yes | ||||
| Grid Monitoring | Yes | ||||
| Surge Protection | Type Il | ||||
| AFCI Protection | Optional | ||||
| Communication | |||||
| Communication | Standard：RS485 Optional：WiFi / GPRS / Etherne | ||||
| Display LED / LCD / WiFi+Appt | |||||
| Standard Compliance | |||||
| IEC 61727, IEC 62116, IEC 60068, IEC 61683, VDE-AR-N 4105, | |||||
| Grid Connection Standards | EN 50549, AS/NZS 4777, CEI 0-21, VDE 0126-1-1/A1 VFR 2014, UTE C15-712-1, NRS 097-2-1, C10/11, G98/G998/G99 | ||||
| Safety / EMC | IEC 62109-1, IEC 62109-2, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3 | ||||
| General Data | |||||
| Dimension (WxH x D) | 481 x 395 x 195 mm | 481 x 395 x 195 mm 534 x 440 x 220 mm | 600 x 430 x 230 mm | ||
| Weight | 13.5kg | 13.5kg 24 kg | 30 kg | ||
| Operating Temperature Range | -30°C~+60°C | ||||
| Cooling Method | Natural | ||||
| Protection Degree | IP66 | ||||
| Max. Operating Altitude | 4000 m | ||||
| Relative Humidity | 0 ~ 100% | ||||
