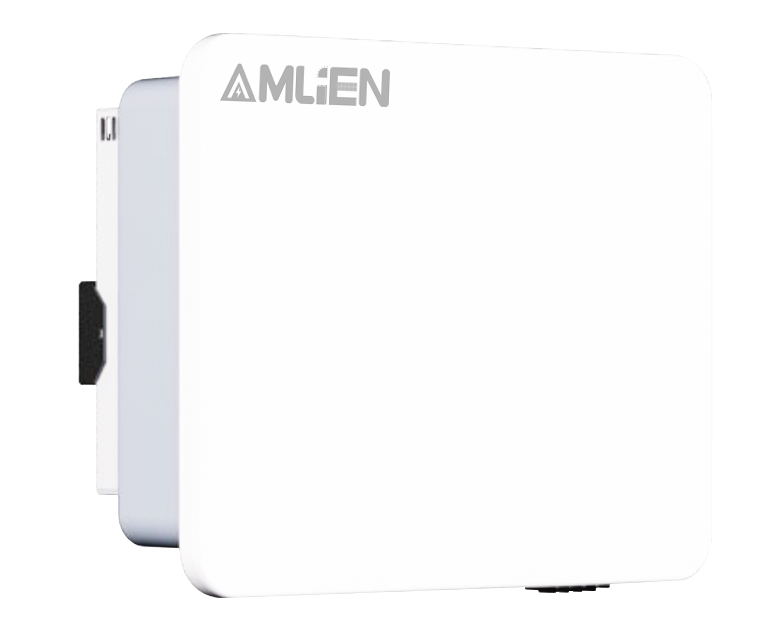

Am3KWI-GT - Amlien 3kW Grid-Tied Inverter
An on-grid inverter is a crucial component in standalone solar power systems. It is designed to convert direct current (DC) electricity generated by solar panels or other renewable sources into alternating current (AC) electricity suitable for powering household appliances and other electrical devices.
| lnput Data (Dc) | LHONG10kW | LHONG15kW | LHONG20kW | LHONG30kW | |
| Max. PV Input Power | 16kW | 24kW | 32kW | 48kW | |
| Max PV Input Voltage | 1100V | ||||
| Start Voltage | 160V | 160V | 250V | 250V | |
| Rated Input Voltage | 600V | ||||
| Full-load MPP Voltage Range | 360V ~ 850V | 450V ~ 850V | 480V ~ 800V | 500V ~ 800V | |
| MPPT Voltage Range | 180V ~ 1000V | 180V ~ 1000V | 200V ~ 1000V | 200V ~ 1000V | |
| Number of MPP Trackers | 2 | 2 | 2 | 3 | |
| Number of String per MPPT | 44958 | 44958 | 44959 | 2 | |
| Max. Short Circuit Current per MPPT | 25A | 25A | 40A | 32A | |
| Max. Current per MPPT | 18A | 18A | 32A | 26A | |
| Output Data (Ac) | |||||
| Max. Output Current | 15.9A | 23.9A | 35.3A | 48.3A | |
| Rated Output Power | 10kW | 15kW | 22kW | 30kW | |
| Max. Output Power | 10kW | 16.5kVA | 24.4kVA | 33.3kVA | |
| Rated Grid Frequency | 50Hz / 60Hz | ||||
| Rated Grid Voltage | 230Vac / 400Vac, 3L / N / PE | ||||
| Power Factor | >0.99 ( 0.8 leading ~ 0.8 lagging ) | ||||
| THDi | <3% ( Rated Power ) | ||||
| Efficiency | |||||
| Max. Efficiency | 0.986 | 0.986 | 0.984 | 0.986 | |
| EU Efficiency | 0.985 | 0.985 | 0.98 | 0.985 | |
| Battery Charge/Discharge Efficiency | 0.999 | ||||
| Protection | |||||
| Anti-islanding Protection | Yes | ||||
| DC Reverse Polarity Protection | Yes | ||||
| Residual Current Monitoring Unit | Yes | ||||
| AC short Circuit Protection | Yes | ||||
| Insulation Resistance Monitoring | Yes | ||||
| Ground Fault Monitoring | Yes | ||||
| Grid Monitoring | Yes | ||||
| Surge Protection | Type Il | ||||
| AFCI Protection | Optional | ||||
| Communication | |||||
| Communication | Standard：RS485 Optional：WiFi / GPRS / Etherne | ||||
| Display | LED / LCD / WiFi+Appt | ||||
| Standard Compliance | |||||
| Grid Connection Standards | IEC 61727, IEC 62116, IEC 60068, IEC 61683, VDE-AR-N 4105, EN 50549, AS/NZS 4777, CEI 0-21, VDE 0126-1-1/A1 VFR 2014, UTE C15-712-1, NRS 097-2-1, C10/11, G98/G998/G99 |
||||
| Safety / EMC | IEC 62109-1, IEC 62109-2, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3 | ||||
| General Data | |||||
| Dimension (WxH x D) | 481 x 395 x 195 mm | 481 x 395 x 195 mm | 534 x 440 x 220 mm | 600 x 430 x 230 mm | |
| Weight | 13.5kg | 13.5kg | 24 kg | 30 kg | |
| Operating Temperature Range | -30°C~+60°C | ||||
| Cooling Method | Natural | ||||
| Protection Degree | IP66 | ||||
| Max. Operating Altitude | 4000 m | ||||
| Relative Humidity | 0 ~ 100% | ||||
