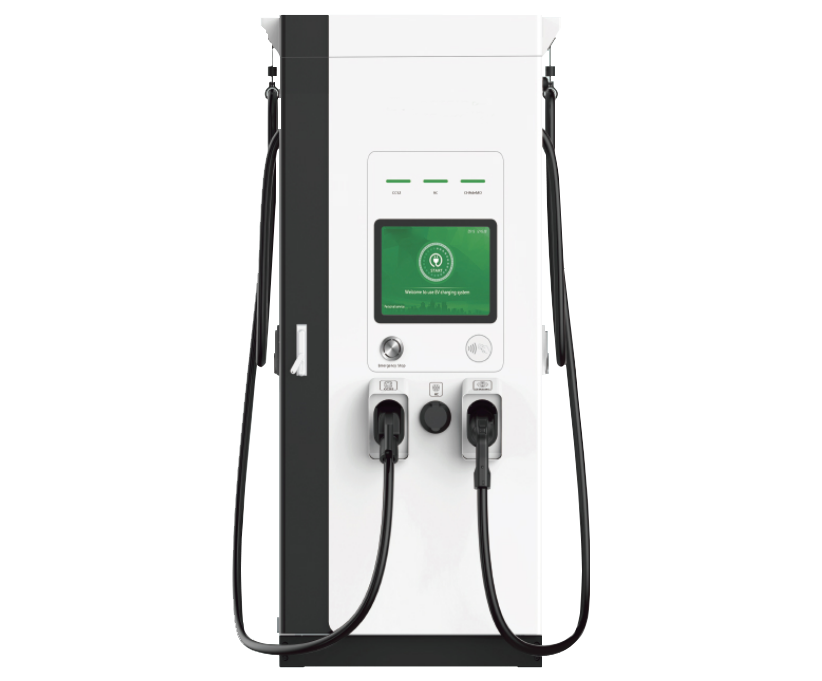

Safe And Reliable EV Charger

Product Review | Top Rated

Safe and Reliable A. 53-fold electrical protections: short circuitleakage grounding, overcurrent, insulationlightning protection, etc.

Get Inquiry

A.53-fold electrical protections: short circuitleakage grounding, overcurrent, insulationlightning protection, etc.

B.Stainless steel cabinetsharing

C.Smart charging

A.Unique module pre-installation design

B.Automatic inspection platform

C.Remote diagnostics and OTA upgrade

A.Low noise design, < 60 dB (A)

B.Support APP,NFC, credit card, Plug &Charge

C.User-friendly cable retraction system

A. Support parallel design to meet futurehigh-power charging needs

B. CCS 1,CCS 2,CHAdeMO,GB/T

C. Built-in 10+ languages

Features	Items	Atlas D(80/120/160)kW-CE	Atlas D(80/120/160)kW-UL
Input	Voltage	480VAC:10%	400VAC+10%
	Current	(96 1 144 1 192) A	(115 1 173 / 231) A
	Frequency	501 60Hz+10%
	AC wiring	3P+N+PE
Output	Voltage	200 VDC - 1000 VDC
	Max current	200 A,500 A
	Power	80 kW,120 kW,160 kW
	One outlet	CCS 1	CCS 2
	Two outlets	CCS 1 + CHAdeMO or GBT	CCS 2 + CHAdeMO or GBT
	Three outlets	CCS 1+ CHAdeMO or GBT+	CCS 2 + CHAdeMO or GBT+
Screen &Communication	HDMI	“15" high brightness Awailable
	Network	Ehternet, Wi-Fi, SIM (2G / 3G / 4G)
	Protocol	OCPP 16J.OCPP 2.0J ready
Protection	Electrical	Protection against short circuit, over-vultage, under-voltage.
	Hardware	Emergency stop button
	Rating	IP54.IK10 (screen IK08)
	Standards	UL 2202, UL 2231-1, UL 2231-2	IEC 61851-1.IEC 61851-23EC 61851-21-2.ROHS
	Offline	1 White listed RFID card 2. Password
	Online	1 APP 2 RFID: ISO 14443 mifare1 3.IS0 15118 Plug & Charge 4. POS (visa i master card. debit card. Apple pay, Google pay)
General Design	Dimentions	(H x W x D) 1880/2100 x 850 x 600 mm
	Weight	<450 kg
	Cable	Standard: 5 m; Optional: 7 m; Cable management system optional
	Super charging	320 kW. two units of 160 kW in parellel mode with 500 A liquid cooling cable, extra accessary needed
	Standby power	< 80 W
	Storage Temp.	-40°C to +80°C
	Operation Temp.	-30°C to +55°C
	Humidity	5% to 95%
	Altitude	≤ 2000 meters
	Noise	≤ 60 dB (A)
	Material	Stainless steel
Warranty	Warranty	3 years, extendable to 5 years
