Technical Parameter

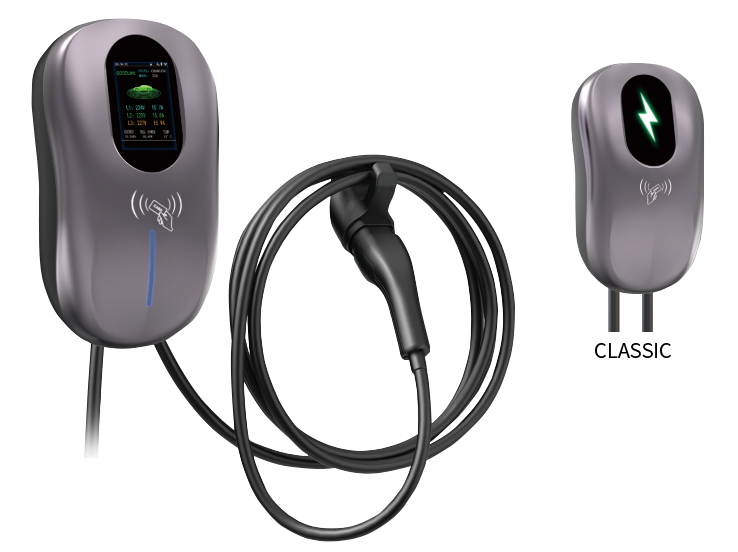

| Style | Classic | Premium | ||||
| Model | S02US7K-C | S02US11K-C | S02US22K-C | S02US7K-P | S02US11K-P | S02US22K-P |
| Current | 32A | 40A | 48A | 32A | 40A | 48A |
| Voltage | AC 110-240V | AC 110-240V | AC 110-240V | AC 110-240V | AC 110-240V | AC 110-240V |
| Power | 7KW | 9.6KW | 11.5KW | 7KW | 9.6KW | 11.5KW |
| Cable specification | 3*10AWG+1* | 2*9AWG+1*1 | 2*8AWG+1*1 | 3*10AWG+1* | 2*9AWG+1*1 | 2*8AWG+1*1 |
| 18AWG | 0AWG+ | 0AWG+ | 18AWG | 0AWG+ | 0AWG+ | |
| TPE OD:16.5 | 1*18AWG TPE OD:16.5 | 1*18AWG TPE OD:20.5 | TPE OD:16.5 | 1*18AWG TPE OD:16.5 | 1*18AWG TPE OD:20.5 | |
| User Interface | LED indicator | LCD display(4.3 inch)+ LED indicator | ||||
| Authentication | Plug and play | Plug and play/ NFC card / APP/OCPP | ||||
| Ground Fault | 30mA for AC faults (Type A ) | 30mA for AC and 6mA for DC faults (Type A + 6) | ||||
| Detection | ||||||
| Charing | Type 1 Plug + 5M cable or custom cable length & color | |||||
| connector | ||||||
| Product | EV plug : 220*65*64mm Control box: 220*130*385mm | |||||
| Dimension | ||||||
| Ingress | Charging plug : IP65 Control box : IP65 | |||||
| Protection | ||||||
| Standard | SAE J1772 UL2594 UL62 | |||||
| Environmental | -35°C to 55°C | |||||
| Temperature | ||||||
| Case material | Thermoplastic ABS+PC (Sabic brand) (flame retardant grade UL94-0) | |||||
| Product Performance | Over voltage protection. Under volage protection. Over load protection. | |||||
| Leakage Protection. Ground protection. Over temperature protection (85°C). Lightning protection. | ||||||
| Short circuit protection. | ||||||
| Flame retardant. | ||||||
